Simulating the Electromagnetic Performance Characteristics of Large Electric Vehicle Batteries
07 May 2021
As part of the upcoming EMC & CI Virtual Event starting on May 19th, 2021, Alastair R Ruddle PhD BSc (Hons) CEng CPhys MIET MInstP SMIEEE, Chief Scientist for Vehicle Resilience at HORIBA MIRA Limited, will be presenting a paper on Simulating the Electromagnetic Performance Characteristics of Large Electric Vehicle Batteries

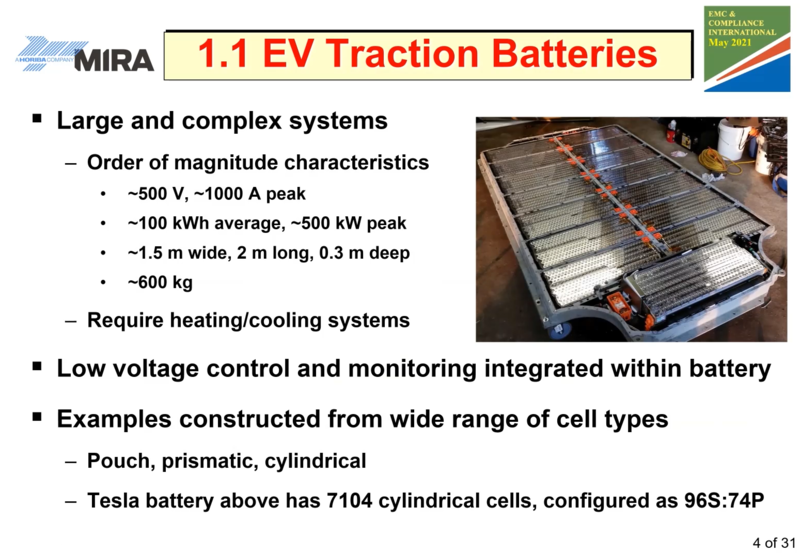

Traction batteries for electric vehicles are large and complex sub-systems. This paper outlines approximation strategies that have been developed to facilitate the simulation of EMC issues, such as battery RF impedance and coupling between the high voltage power network and the low voltage networks.
A related issue is human exposure to electromagnetic fields (EMF) associated with the fluctuating traction currents flowing through the battery. For EMF assessments, knowledge of the 3D path geometry and frequency content of traction current waveforms can be used to estimate the spatial distributions of low frequency magnetic fields and exposure metrics. For EMC investigations, more practicable measurement of individual cells has been used to develop efficient hybrid 3D/circuit models for assemblies of large numbers of such cells used to form traction batteries.
